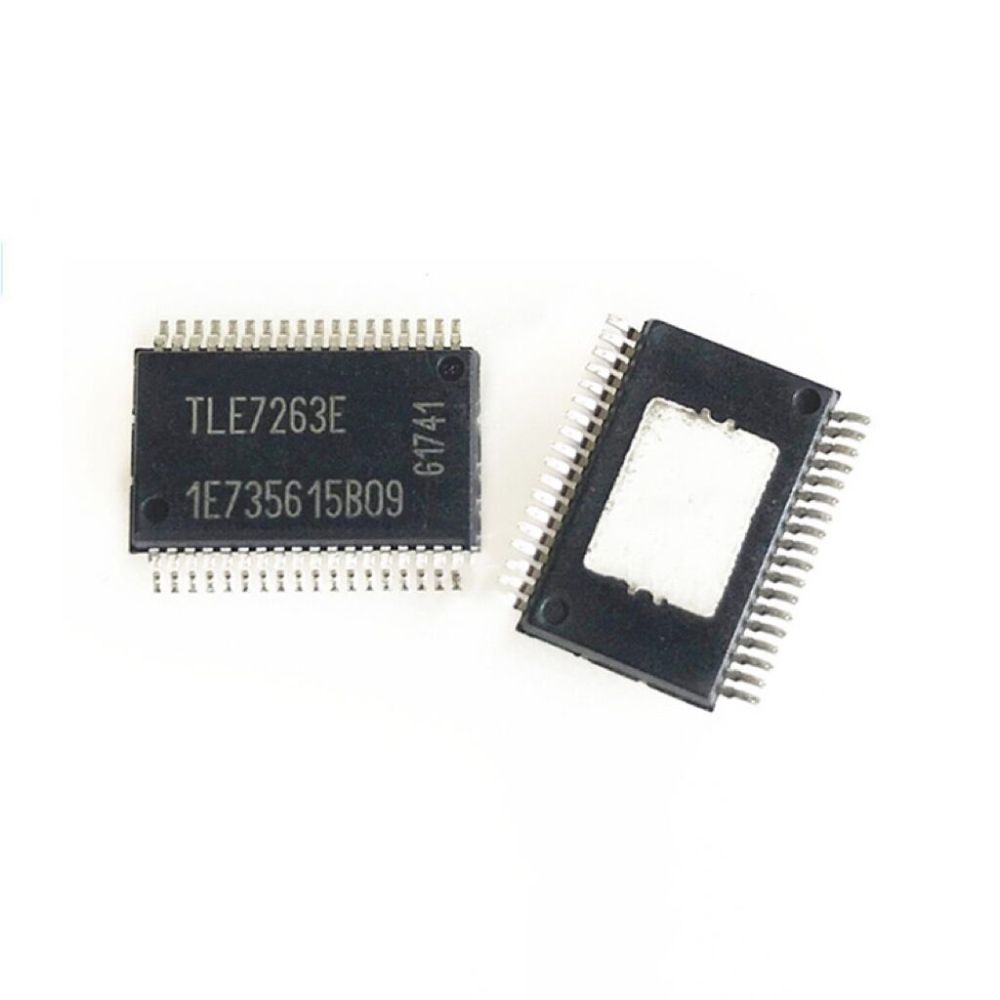

Infineon Original TLE7263E SSOP36 Car Power Chips Mercedes-Benz 212 Steering Angle Repair ICs

Infineon Original TLE7263E SSOP36 Car power module IC chip Mercedes-Benz 212 steering angle

The TLE7263E parts manufactured by Infineon are available for purchase at Autoecuchips.com. Here you can find various types and values ​​of electronic parts from the world's leading manufacturers. The TLE7263E components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.

The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the TLE7263E Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.

Here are the details about TLE7263E chip:

- Features:
  - Integrated HS-CAN and LIN transmission system.
  - Dual low dropout regulators (LDOs) that provide 5V.
  - High side switch to support 150mA.
  - Supports 16-bit SPI serial peripheral interface.
  - Built-in window watchdog circuit, reset function, fail-safe output, voltage sense input, and undervoltage reset.
  - Supports low power mode, can be woken up from low power mode by bus message or double level sensitive monitor/wake-up input.
  - Complies with automotive grade standards and is AEC-Q100 certified.

Technical Specifications
- Operating voltage: VS = 4.5V to 30V (depending on the application scenario, e.g. Vbus,rec = 0.475 × VS to 0.525 × VS in LIN specification 1.3 (2.0)).
- Output current: 1.5A per channel.
- Operating temperature range: -40°C to +125°C (automotive grade applications).
- Package type: PG-DSO-36.
- On-resistance: 0.9Ω typical.
- CAN data rate: 1 MBaud maximum.
- LIN data rate: up to 20 kBaud.


Applicable Makes and Models

TLE7263E chips are widely used in automotive electronics, especially in the following brands and models:

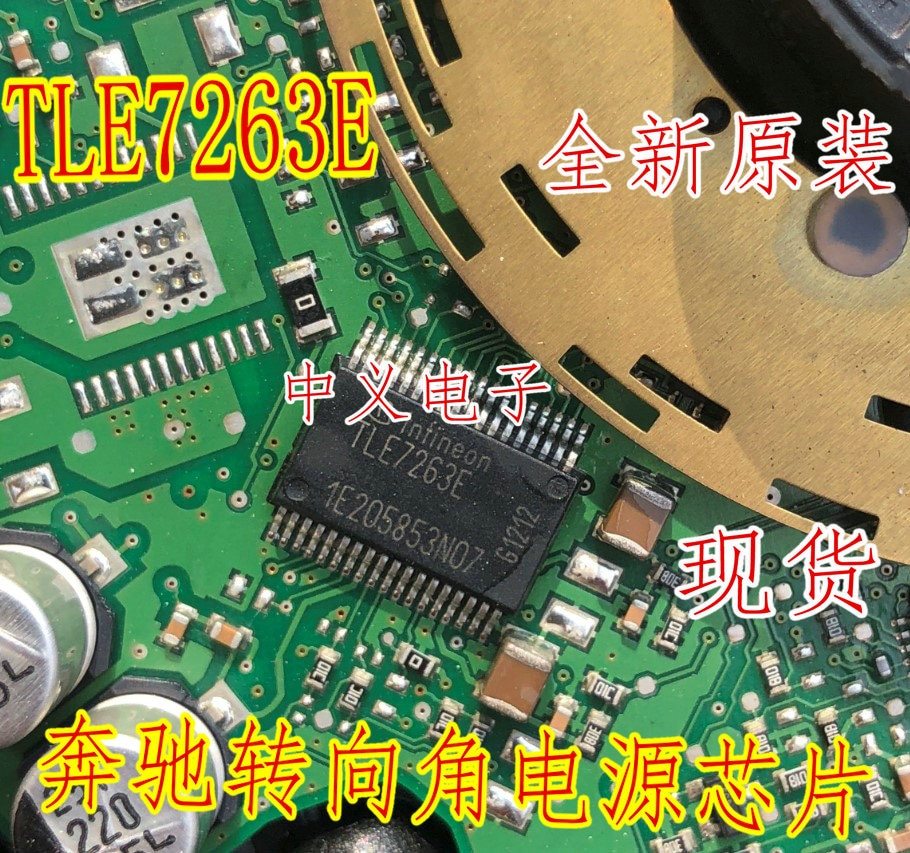

- Mercedes-Benz: Used for Mercedes-Benz steering angle internal fault vulnerable power IC chip.

Cautions
- Compatibility: Before purchasing, please check whether the chip is compatible with your specific brand, model and year of automobile.
- Installation Note: When installing, please make sure the wiring is connected correctly to avoid wrong wiring leading to damage of the chip or malfunction of the car electronic system. It is recommended that the installation be carried out by a professional automotive service technician.
- Working environment: Although the chip has a certain degree of heat resistance and anti-interference ability, but in the extremely harsh working environment, its performance may be affected, you need to pay attention to the daily maintenance of the car and maintenance, to maintain a good working environment.

Summary
TLE7263E is a high-performance system base chip produced by Infineon Technologies, which is widely used in automotive electronic control units (ECUs), especially the Mercedes-Benz Steering Angle Internal Fault Vulnerable Power IC chip. Its integrated HS-CAN and LIN transmission system, dual low dropout regulators (LDOs), high-side switching, and multiple protection functions have made it widely used in a variety of automotive brands and models. During use, pay attention to the chip's compatibility, installation requirements, and operating environment to ensure proper operation of the automotive electronic system.

Welcome to our shop!


Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.


Product Description:


1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.

2.We will ship the items within 3 working days after the payment is reached.

3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.


REFUNDS & RETURN:


We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.

You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).

Return the goods and the buyer is responsible for all expenses!!


If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
