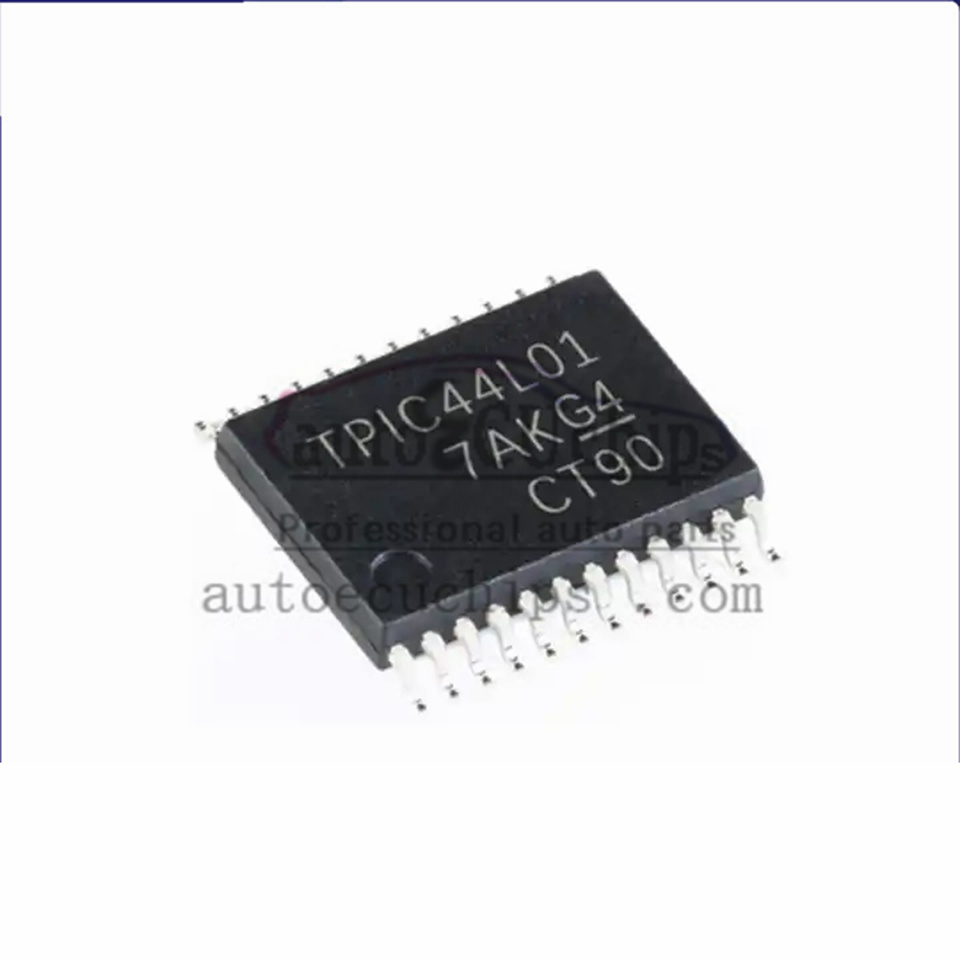

10pcs TPIC44L01 IC44L01 TPI44L01 SOP24 Automotive computer board ignition driver chip
The TPIC44L01 parts manufactured by Freescale are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The TPIC44L01 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the TPIC44L01 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Here is more information about the TPIC44L01 SOP24 chip:
Technical Parameters
- Number of channels: 4 channels
- Drive current: 1.2mA (rising / falling)
- Logic supply voltage: 4.5V to 5.5V
- Battery supply voltage: 8V to 24V
- Operating temperature range: -40°C to +125°C
- Protection features: independent shorted load/shorted-to-battery fault detection, independent off-state open load fault detection, over-battery voltage lockout protection and fault reporting, under-battery voltage lockout protection (provided by TPIC44L01 and TPIC44L02), asynchronous open-drain fault flags, fault status can be returned via serial output termination, internal global power-up reset function and external RESET pin, high-impedance CMOS-compatible inputs with hysteresis characteristics
FEATURES
- Multiple Input Interfaces: Serial and parallel input interfaces are available, allowing the appropriate control method to be selected according to application requirements.
- Fault Detection and Protection: Comprehensive fault detection functions including short-circuit loads, open-circuit loads, over-battery voltage and under-battery voltage, etc., and faults can be reported to the controller via the FLT pin.
- Clamp protection: Integrated 55V inductive load clamp and VGS protection clamp protect external power FETs from inductive voltage transients.
- Cascadable: Multiple TPIC44L01 chips can be cascaded to expand drive capability or realize more complex functions.
Precautions
- Compatibility: Before purchasing, please make sure the chip is compatible with your application.
- Mounting Instructions:
- Make sure the chip is mounted in the correct orientation and the pins are aligned with the pads on the board.
- During the soldering process, pay attention to temperature control to avoid overheating and damaging the chip.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Summary
The TPIC44L01 SOP24 is a high-performance 4-channel low-side preamplifier manufactured by Texas Instruments for a wide range of low-frequency switching and inductive load applications. Its multiple protection features and flexible control make it an excellent performer in electronic systems.
