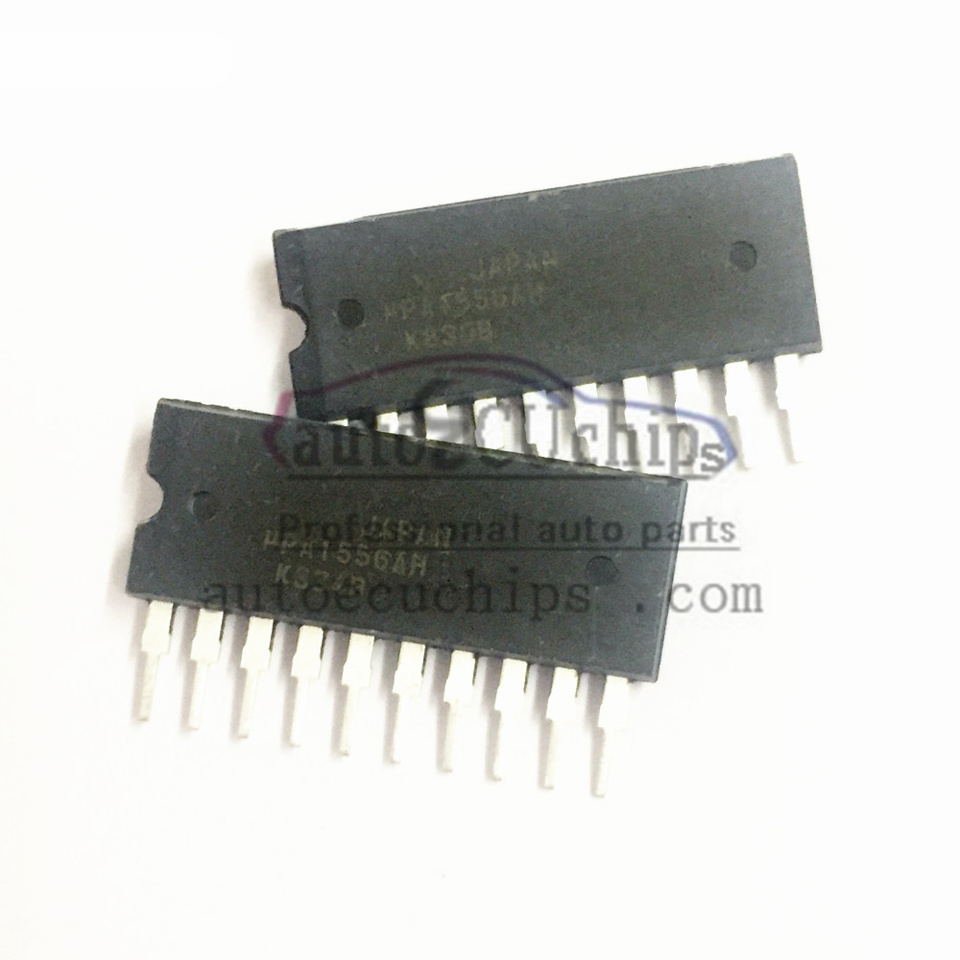

10Pcs UPA1556AH UPA1556 ZIP10 Car Fuel Injection Driver IC Chip Nissan Car repair Original Chipnet
The UPA1556AH parts manufactured by autoecuchips.com are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The UPA1556AH components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the UPA1556AH Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
The UPA1556AH ZIP10 is an N-Channel Power MOSFET manufactured by Renesas (Renesas Electronics) and is a Compound Field Effect Power Transistor. Below are detailed information about this chip:
Technical Parameters
- Operating voltage:
- Drain-source voltage (V(BR)DSS): 100V
- Operating current:
- Drain current (ID): 5A
- On-resistance (RDS(on)):
- At 4V: 250mΩ
- Power consumption (Pd): 3.5W
- Operating temperature range: -55°C to +150°C
- Input capacitance (Ciss): 700pF@10V
- Reverse transfer capacitance (Crss): 30pF
- GATE CHARGE (Qg): 17nC
- Gate threshold voltage (Vgs(th)): 1V@3A
Application Scenarios
- Power management: for switching power supplies, DC-DC converters, etc.
- Motor drive: For drive circuits for small motors.
- Switching circuits: For applications requiring high voltage and high current switching.
Precautions
- Storage conditions: It is recommended to keep in a dry storage cabinet to avoid humidity.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
- Compatibility: Before purchasing, please confirm that the chip is compatible with your application.
SUMMARY
The UPA1556AH ZIP10 is a high-performance N-Channel Power MOSFET for a wide range of power management and switching circuit applications. Its 100V operating voltage and 5A operating current make it suitable for high voltage and high current scenarios.
