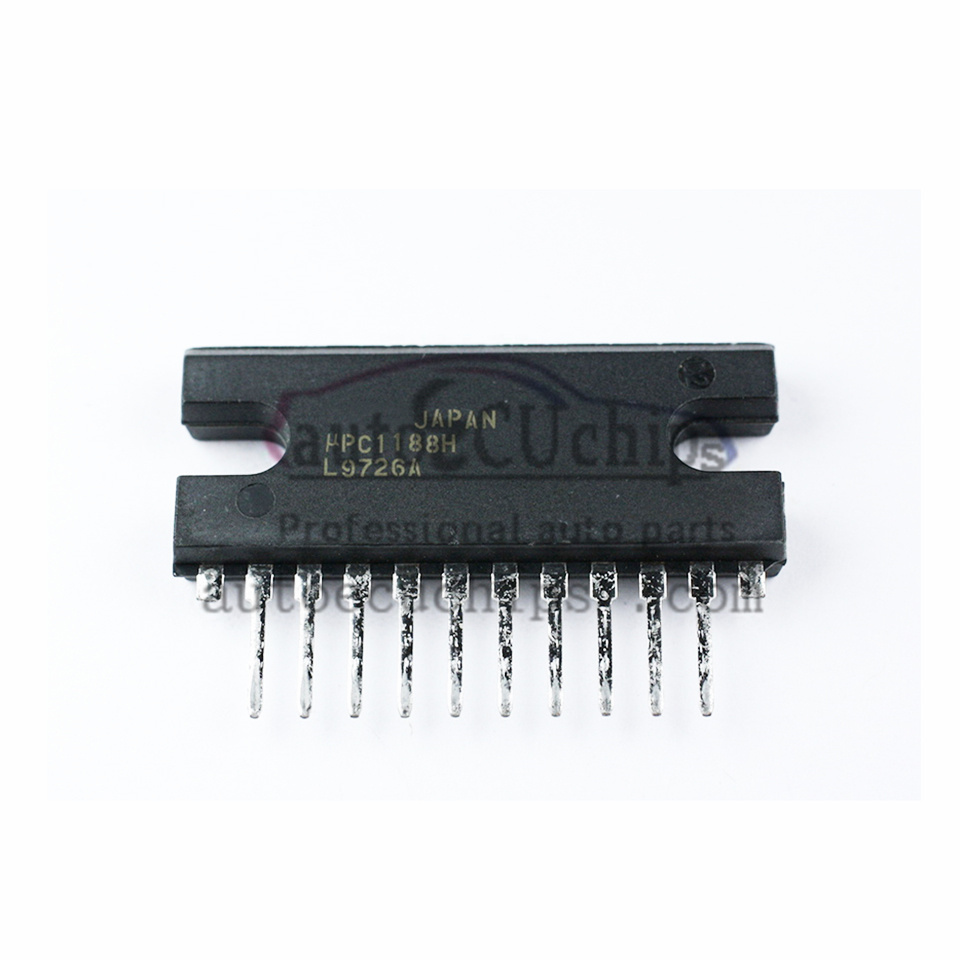

10PCS UPC1188H UPC1188H C1188H Audio Power Amplifier Block Integrated Block Electronic Chip
The UPC1188H parts manufactured by NEC are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The UPC1188H components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the UPC1188H Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are detailed information about the UPC1188H ZIP12 chip:
Technical Parameters
- Output power: 20W (typical, 8Ω load, 1% THD, ±22V supply)
- Operating voltage: ±22V (typical)
- Frequency Response: 20 Hz to 20 kHz (audio range)
- Total Harmonic Distortion (THD):
- 1% (20W output, 8Ω load)
- 0.5% (20W output, 8Ω load, ±22V supply, Au = 27.5 dB)
- 0.02% (5W output, 8Ω load, 1kHz frequency)
- 0.005% (5W output, 8Ω load, 1kHz frequency, Au = 27.5 dB)
- Bandwidth: 250 kHz (-3 dB)
- MUTE FUNCTION: Mute function to eliminate noise during power-on and power-off
- Protection: Built-in thermal and overcurrent protection circuits.
- Applicable Circuits: Suitable for negative feedback tone control amplifiers.
- Operating Temperature Range: Typically -25°C to +70°C
Cautions
- COMPATIBILITY: Before purchasing, please make sure the chip is compatible with your device.
- Installation Instructions:
- Make sure the chip is mounted in the right direction and the pins are aligned with the pads on the board.
- During soldering, pay attention to temperature control to avoid overheating and damaging the chip.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Summary
The UPC1188H ZIP12 is a high-performance audio power amplifier manufactured by NEC for a wide range of hi-fi audio applications. Its high output power, low distortion and multiple protection features make it an excellent performer in audio equipment and car audio systems. If you need to purchase this chip, you can find suitable suppliers through Taobao, Alibaba, Jotrin Electronics, Veswin, eBay and other platforms. During use, please make sure it is compatible with your equipment and follow the specifications for installation and operation.
