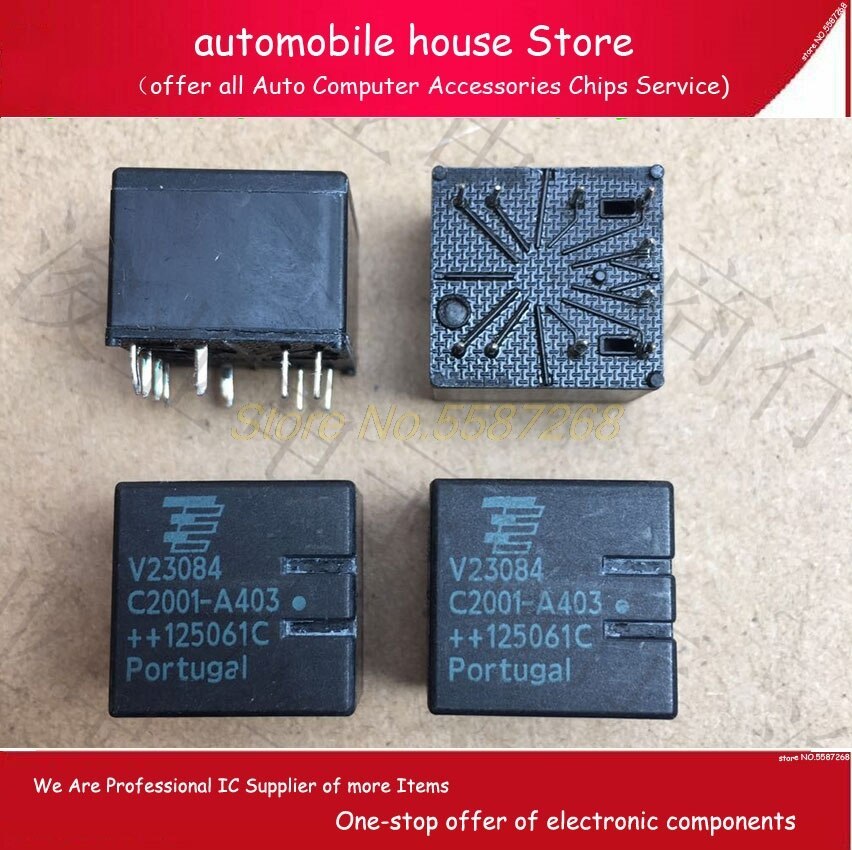

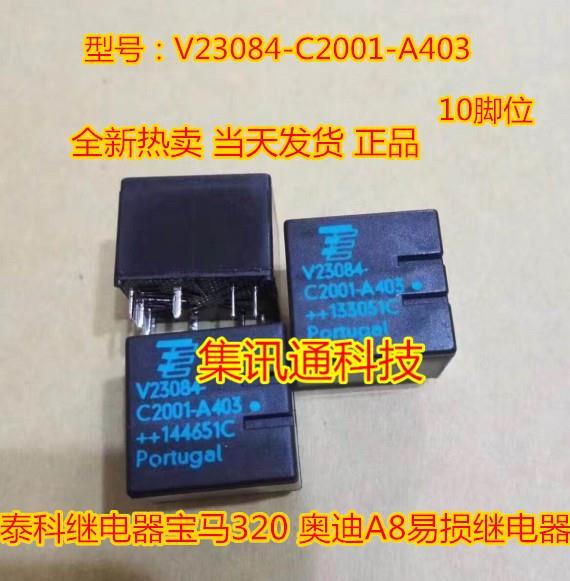

The V23084-C2001-A403 is a high-performance, automotive-grade dual mini relay that is available for purchase at Autoecuchips.com and is suitable for a wide range of automotive electronic systems. It features a dual-system design, high reliability, low power consumption, and compact packaging, making it an ideal automotive electronic control solution. If you need further technical support or purchasing advice, you can contact us for WhatsApp 86 18718921345 or consult the data sheet.
Technical Specifications:
• Operating voltage: 12VDC
• Current Rating:
• System: 20A/20A
• Motor: 30A/30A
• Reverse: 18A/18A
• Maximum turn-on current: 35A
• Maximum breaking current: 35A
• Contact material: A900.15
• Minimum recommended load: 1A@5VDC
• Voltage drop:
• At 10A: 300mV
• 970mV: 300mV
• Electrical measurements: Performed at -40°C to 85°C and 13.5VDC, including a variety of test conditions and load conditions.
• Dielectric strength: 600VAC, 4600VAC
• Environmental Testing Standards:
• Dry heat: EC 60088-2-2
• Damp heat: EC 60088-2-14
• Temperature cycle: EC 10088-2-30
• Shock test: EC 60088-2-2/IEC 60088-2-29
Key features:
• Dual-system design:
• Two independent relay systems for space saving.
• High Reliability:
• Automotive-grade compliant, suitable for harsh automotive environments.
• Low power consumption:
• Suitable for low-power applications.
•Performance:
• High current rating for high power loads.
• Compact Package:
• Available in a DIP-10 package for compact PCB designs.
Applicable models
V23084-C2001-A403 relay is widely used in a variety of automobile brands and models, including but not limited to:
• BMW: 320, 520i, E46, E85, E83, E52, etc.
• Audi: A8, etc.
• GM: Some models.
• Mercedes-Benz: C-Class, E-Class, CLK-Class, etc.
• Buick: Some models.
