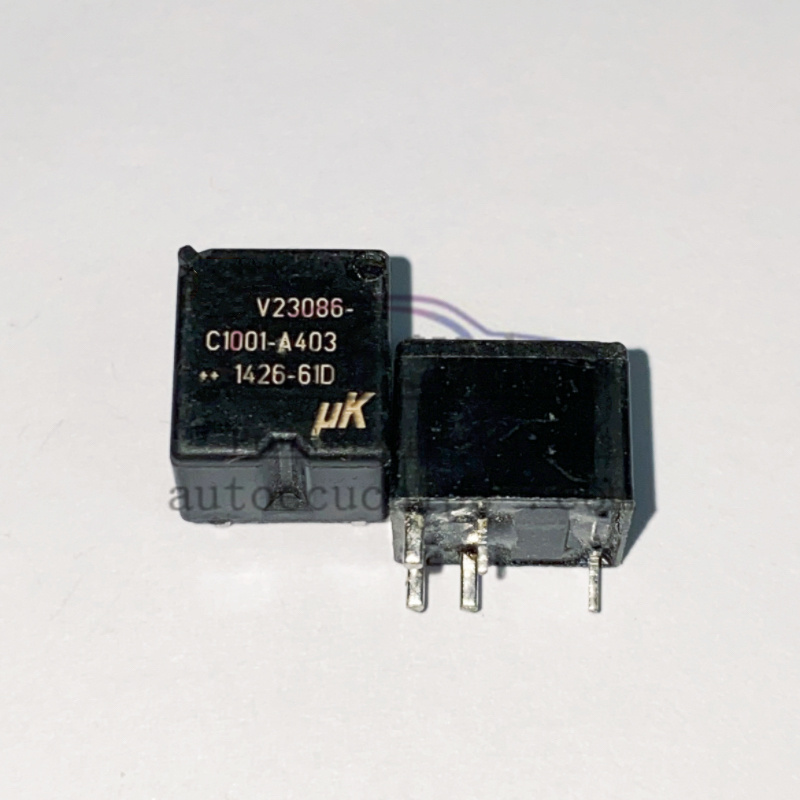

10PCS Automotive Relays V23086-C1001-A403 20A-30A 12V 5PIN A Set Of Conversions V23086 C1001-A403
The V23086-C1001-A403 parts manufactured by TYCO are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The V23086-C1001-A403 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the V23086-C1001-A403 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are detailed information about the V23086-C1001-A403 Relay:
- Features:
- High current carrying capacity: maximum continuous contact current up to 30A
- Low power consumption: Coil power rating of 0.55W.
- High Reliability: Mechanical life up to 10 million operations, electrical life up to 100,000 operations at 20A, 14VDC load.
- Compact design: 60% smaller than other similar power relays.
- Low-noise operation: suitable for noise-sensitive applications.
Technical Parameters
- Operating voltage: 12VDC (rated coil voltage)
- Coil resistance: 254Ω
- Contact form: 1 Form C (single-pole double-throw, SPDT)
- Maximum continuous contact current: 30A (at 85°C environment)
- Maximum switching power: 35-320W DC (depending on load voltage)
- Minimum recommended current: 0.5A@12VDC
- Initial voltage drop: 200mV max. for normally open contacts without a load
- Operating temperature range: -40°C to +105°C
- Storage temperature range: -40°C to +155°C
- Shock resistance: 20g, 11 ms half-sine wave pulse
- Vibration Resistance: Varying vibration resistance over different frequency ranges
Application Models and Brands
- Application brands: BMW, Mercedes-Benz, Volkswagen and other brands of automotive electronic systems may use the relay, used to control a variety of in-vehicle devices and systems
- Application models: such as BMW 3 series, 5 series, Mercedes-Benz C-class, E-class, Volkswagen Golf, Passat and other models of the engine control unit, body control module, etc.
Cautions
- COMPATIBILITY: Before purchasing, please make sure the relay is compatible with your car's electronic system!
- Installation Instructions:
- Make sure the relay is mounted in the correct orientation and the pins are aligned with the circuit board pads
- During the soldering process, pay attention to the temperature control to avoid overheating and damaging the relay.
- Take appropriate static protection measures to avoid static damage to the relay.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Summary
The V23086-C1001-A403 is a high performance automotive relay manufactured by TE Connectivity for use in a wide range of automotive electronics applications. Its high current carrying capacity, low power consumption, high reliability, and miniaturized design make it an excellent performer in automotive electronic systems.
