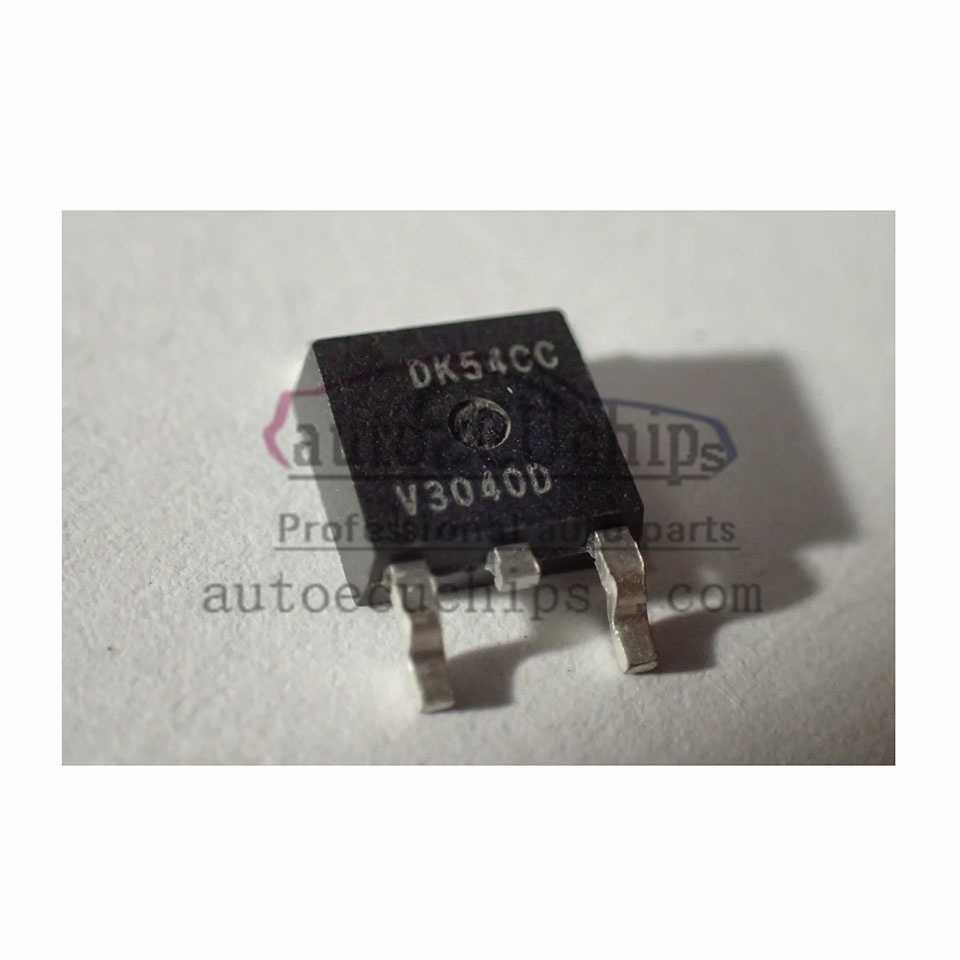

50pcs Auto Ignition Repair Chips Original V3040D TO252 ISL9V3040D3ST IGBT 400V 17A M7 transistor

Ignition Repair  New Original V3040D TO252 ISL9V3040D3ST IGBT 400V 17A M7 Computer Board transistor 50pcs


The ISL9V3040D3ST parts manufactured by Fairchild are available for purchase at Autoecuchips.com. Here you can find various types and values ​​of electronic parts from the world's leading manufacturers. The ISL9V3040D3ST components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.

The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the ISL9V3040D3ST Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.

Below are detailed information about the V3040D TO252 chip:

Technical Parameters
- Type: N-channel IGBT (Insulated Gate Bipolar Transistor)
- Maximum collector-emitter voltage (Vceo): 400 V
- Maximum collector current (Ic): 21 A (at 25°C)
- On-resistance (Rds(on)): 1.6 Ω typical (at 25°C)
- Self-clamping inductive switching energy (SCIS): 300 mJ (at 25°C)
- Operating temperature range: -40°C to +175°C
- Package type: TO-252 (D-Pak)

Functional features
- High power handling capability: capable of handling up to 300 mJ of selfclamped inductive switching energy for high power applications.
- Fast switching speed: Low on-resistance and fast switching characteristics ensure efficient ignition control.
- Multiple Package Options: A variety of package types are available, including TO-252, TO-263, TO-262, and TO-220, to meet different design requirements.
- Internal Voltage Clamp: Built-in diode provides voltage clamping function, simplifying circuit design by eliminating the need for external components.

Applicable brands and models
- BMW: The V3040D chip is used in the ignition system of BMW 3 Series and 5 Series to ensure precise ignition control of the engine.
- Mercedes-Benz: The chip is used in the ignition system of Mercedes-Benz C-Class, E-Class and other models to drive the ignition coil.
- Audi: V3040D is used in the engine control unit of Audi A4, A6 and other models to manage the ignition system.
- Volkswagen: The chip is used in the ignition system of Volkswagen Golf, Passat and other models to ensure efficient engine operation.

Caution
- COMPATIBILITY: Before purchasing, please make sure the chip is compatible with your car's ignition system.
- Installation Instructions:
  - Make sure the chip is mounted in the correct orientation and the pins are aligned with the circuit board pads.
  - During soldering, pay attention to temperature control to avoid overheating and damaging the chip.
  - Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.

Summary
V3040D TO252 is a high-performance N-channel IGBT manufactured by Fairchild Semiconductor, which is widely used in automotive ignition systems of BMW, Mercedes-Benz, Audi, Volkswagen and other brands. Its high power handling capability, fast switching speed and multiple protection functions make it an excellent performer in automotive electronic systems.

Welcome to our shop!


Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.


Product Description:


1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.

2.We will ship the items within 3 working days after the payment is reached.

3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.


REFUNDS & RETURN:


We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.

You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).

Return the goods and the buyer is responsible for all expenses!!


If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
