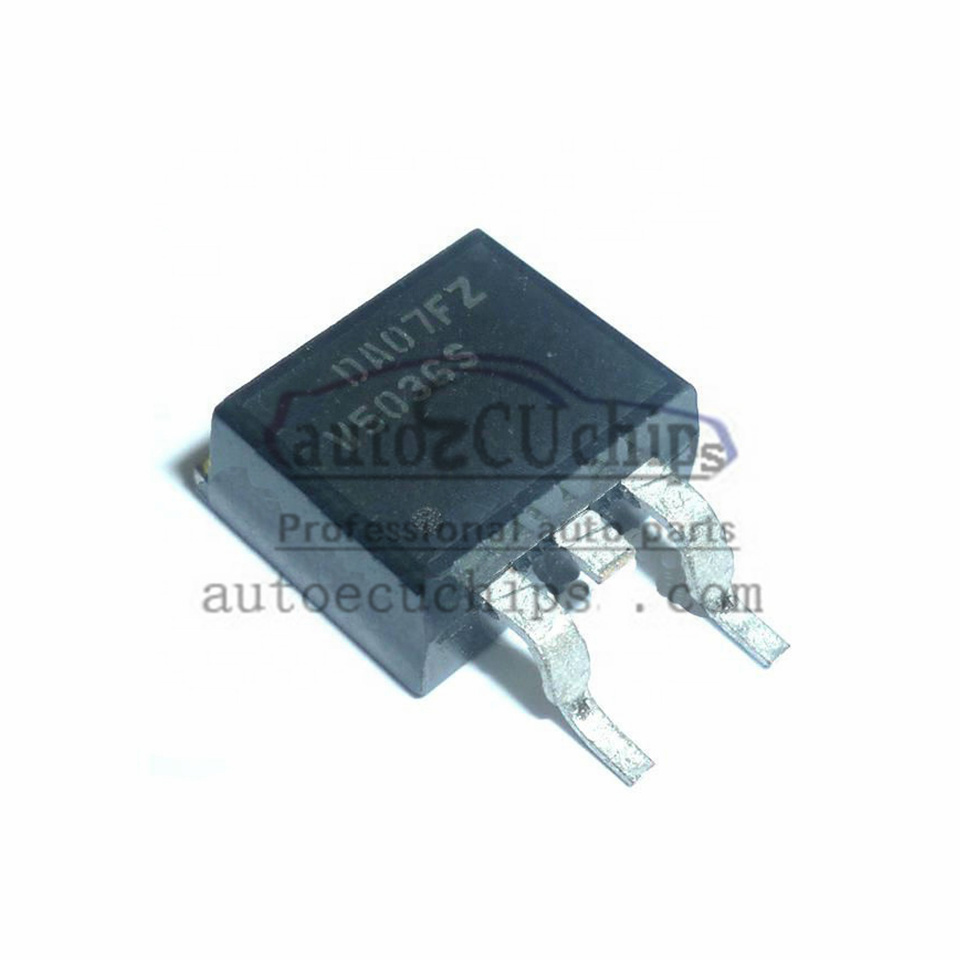

10pcs Original V5036S V503GS TO263 Repair Chip Wuling Hongguang Siemens Computer Board Ignition Tube IC
The V5036S parts manufactured by Fairchild are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The V5036S components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the V5036S Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are detailed information about the V5036S TO-263 chip:
Technical Parameters
- Type: N-channel IGBT (Insulated Gate Bipolar Transistor)
- Maximum collector-emitter voltage (Vceo): 390 V
- Maximum collector current (Ic): 46 A
- Maximum power consumption (Pd): 275 W
- Maximum junction temperature (Tj): 175°C
- On-resistance (Rds(on)): 0.04 Ω typical
- Self-clamping inductive switching energy (SCIS): 500 mJ (at 25°C)
- Logic-level gate drive
Functional Features
- High power handling capability: capable of handling up to 275W for high power applications.
- Low on-resistance: Low on-resistance of 0.04 Ω helps reduce power loss and improve system efficiency.
- Fast switching speed: Low gate charge and input capacitance ensure fast switching operation and reduce switching losses.
- High Operating Temperature: Capable of operating at junction temperatures up to 175°C, making it suitable for high-temperature applications in automotive and industrial environments.
- Multiple protection features: Includes thermal shutdown and overcurrent protection to ensure safe and reliable operation.
- Self-Clamping Inductive Switch (SCIS): Internal diode provides voltage clamping, eliminating the need for external components and simplifying circuit design.
Application Areas
- Automotive electronic systems: applicable to body control modules (BCM), on-board computers, door control modules, etc. of various automotive brands and models.
- Specific applications: automotive ignition coil drive circuits, coil up-plugging applications.
Precautions
- COMPATIBILITY: Before purchasing, please make sure the chip is compatible with your car's electronic system.
- Installation Instructions:
- Make sure the chip is mounted in the right direction and the pins are aligned with the pads on the board.
- During soldering, pay attention to temperature control to avoid overheating and damaging the chip.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Summary
The V5036S TO-263 is a high-performance N-channel IGBT manufactured by ON Semiconductor and widely used in automotive electronic systems. Its high power handling capability, low on-resistance, and fast switching speed make it an excellent performer in automotive electronic systems.
