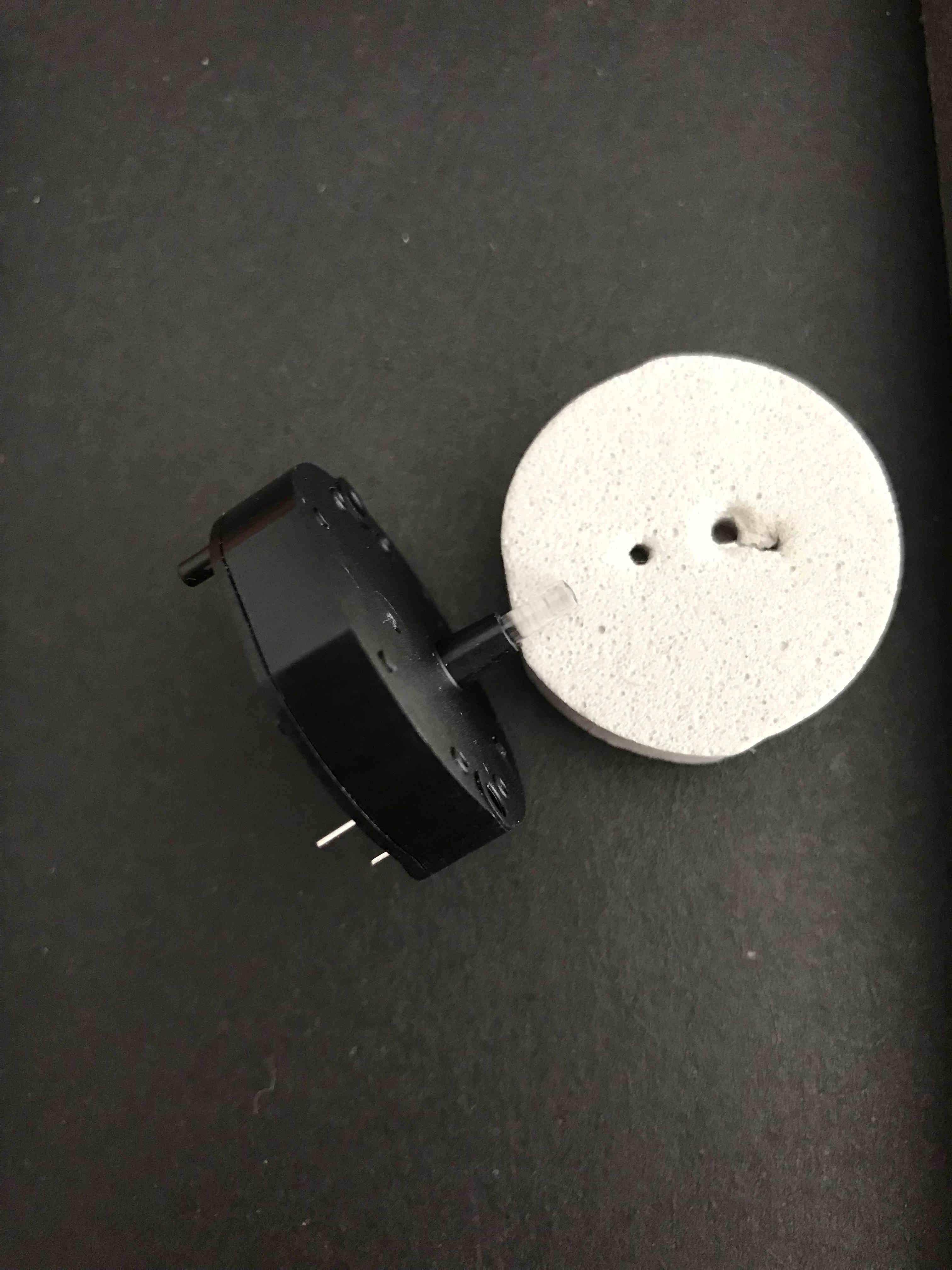

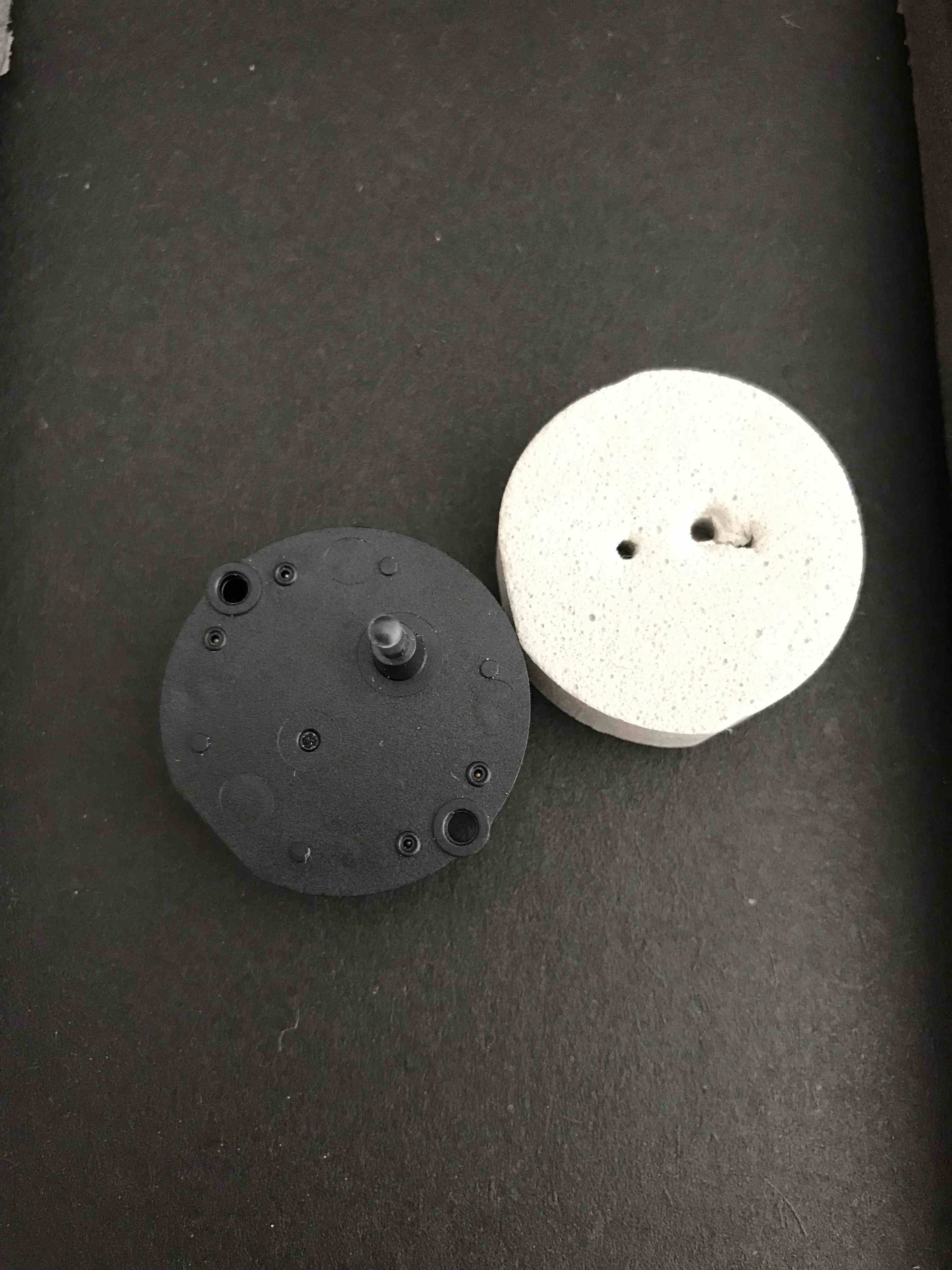

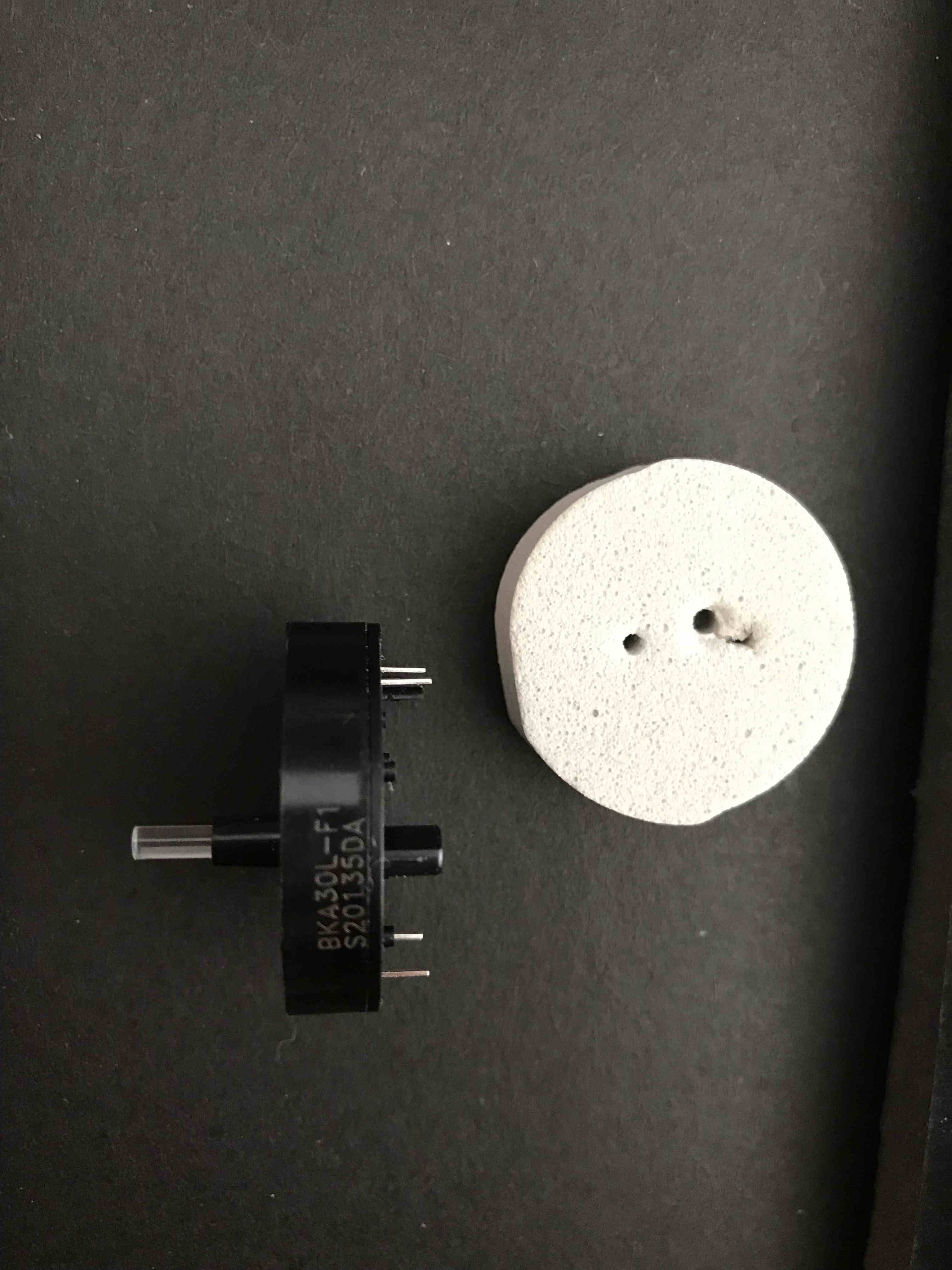

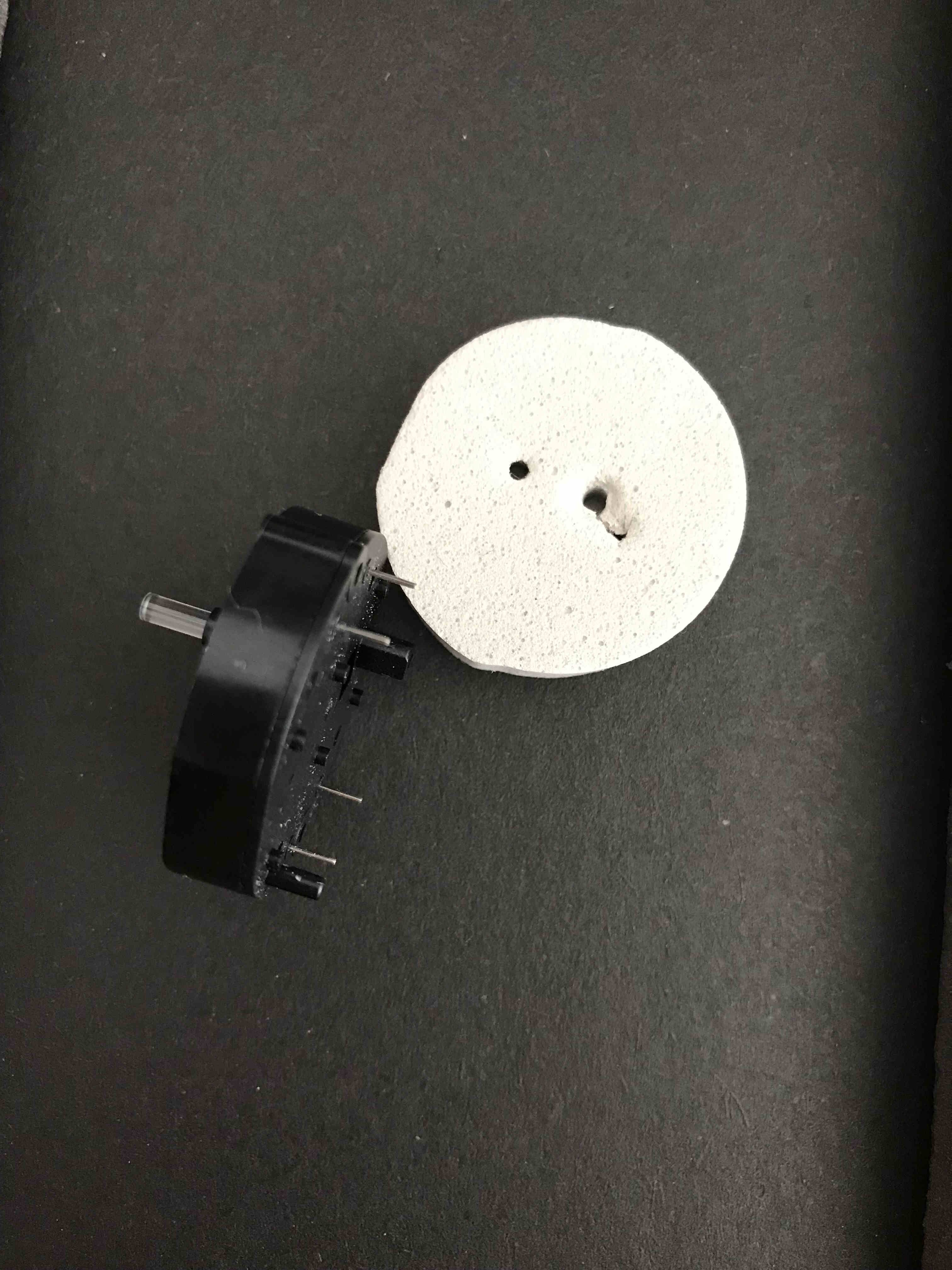

BKA30L-F1 instrument Cluster Repair Stepper Motor General VID23-01 transparent shaft

BKA30L-F1 is a high performance automotive instrumentation stepper motor for a wide range of automotive instrument cluster systems. It features low noise, high torque and high accuracy, making it an ideal automotive instrumentation control solution. If you need further technical support or purchase advice, you can contact us on WhatsApp +8618718921345 or check the datasheet.



Technical specifications

- Operating voltage range: 5V

- Operating temperature range: -40°C to +105°C

- Coil Resistance: 260Ω to 300Ω

- Operating current: 15mA to 20mA (at 200Hz)

- Maximum dynamic torque:

- At 200Hz: 1.1 mNm

- At 400Hz: 0.9 mNm

- Static torque: 3.5 mNm to 4.0 mNm (at 5V)

- Maximum operating noise: 38 dB(A) to 42 dB(A)

- Maximum freewheeling angle: 320°

- Pointer parameters:

- Length: 50 mm to 80 mm

- Mass: 2.5 g to 10 g

- Moment of inertia: 2E-7 Kgm² to 20E-7 Kgm²

- Unbalance torque: 0.01 mNm to 0.04 mNm

- Mounting method: Front mounting

- Product size：Φ30mm×8.05mm

- Output shaft O.D.: Φ2.4mm

- Outside diameter of cam: Φ4.2mm

- Total height: 18.93mm


Functional Description

- High resolution: 1/3° resolution (per partial step), 1/12° resolution (per microstep)

- Large operating temperature range: -40°C to +105°C

- Low power consumption: average operating current 15mA to 20mA

- Large operating speed range: 0 to 600°/s

- High reliability: meets automotive grade application standards

- Small size: Φ30mm x 7.2mm


Applicable Vehicle Models

- Universal: Suitable for a wide range of automotive makes and models of dashboards.
