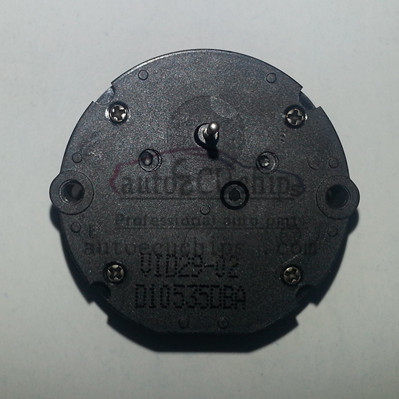

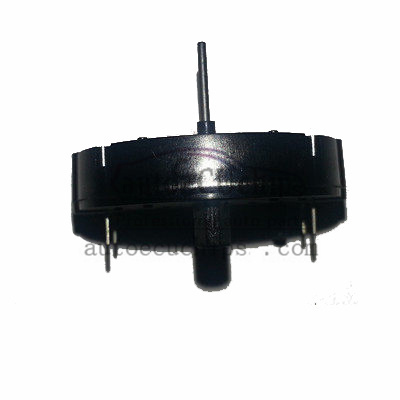

10pcs Steper Motor VID29-02 for Glorification Original Car Instrument Stepper Motor Repair Changan Star
The VID29-02 parts manufactured by autoecuchips.com are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The VID29-02 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the VID29-02 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below you will find detailed information on the VID29-02 including its technical specifications, application scenarios, applicable models and purchasing information:
- Features:
- Built-in gear train with 180:1 reduction ratio
- Highly accurate step angle resolution (down to 1/12°)
- Operating voltage range 5V to 10V
- Low power consumption (less than 20mA, 2 x 100mW at 5V)
- Wide operating temperature range (-40°C to 105°C)
- Precision thin design (outer size: Φ30mm × 7.0mm)
- Long life (special wear-resistant material and tooth design)
Technical Parameters
- Operating voltage: 5V to 10V
- Operating current: less than 20mA (at 5V)
- Operating temperature range: -40°C to 105°C
- Stepping angle resolution: 1/12°
- Maximum angular velocity: 600°/s
- Dynamic torque:
- M200: 1.01.4 mNm (200Hz)
- M400: 0.71.0 mNm (400Hz)
- Static torque: 3.54.0 mNm (at 5V)
- Equivalent motor inertia at output: 4.225 x 10^-7 kgm²
- Gear ratio: 180:1
- Dimensions: Φ30mm × 7.0mm
- Weight: Lightweight design for various dashboard applications
Applicable Vehicle Models
- Automobile brands: Suitable for a wide range of automobile brands, including but not limited to Volkswagen, BMW, Mercedes-Benz, Toyota, etc.
- Specific car models: Widely used in the instrument panel of various car models, such as speedometer, tachometer, fuel gauge, etc.
Cautions
- COMPATIBILITY: Before purchasing, please make sure that this stepper motor is compatible with your application.
- Installation Instructions:
- Make sure the power supply voltage meets the motor specifications.
- Use appropriate decoupling capacitors to minimize noise.
- Operate the unit within a temperature range of -40°C to 105°C.
- Technical Support: If further technical support is required, it is recommended that the supplier or manufacturer be contacted.
SUMMARY
The VID29-02 is a high-precision miniature stepper motor manufactured by VID for use in a wide range of automotive makes and models of instrument clusters. Its high precision, low power consumption and long life make it an excellent performer in automotive electronic systems.
