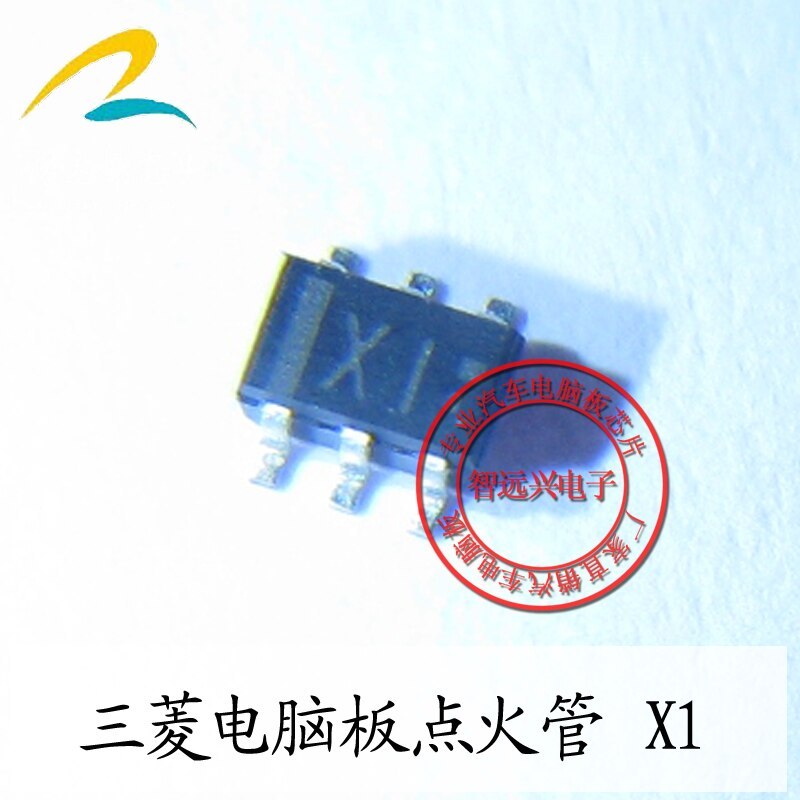

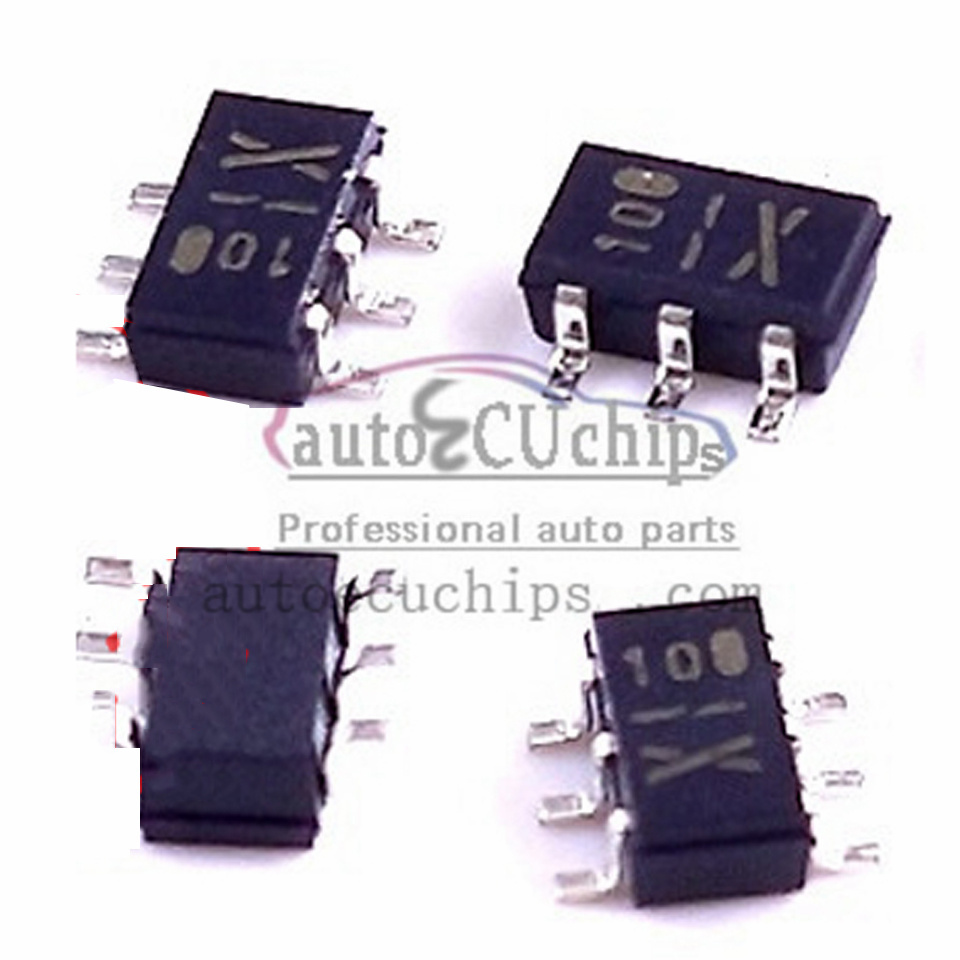

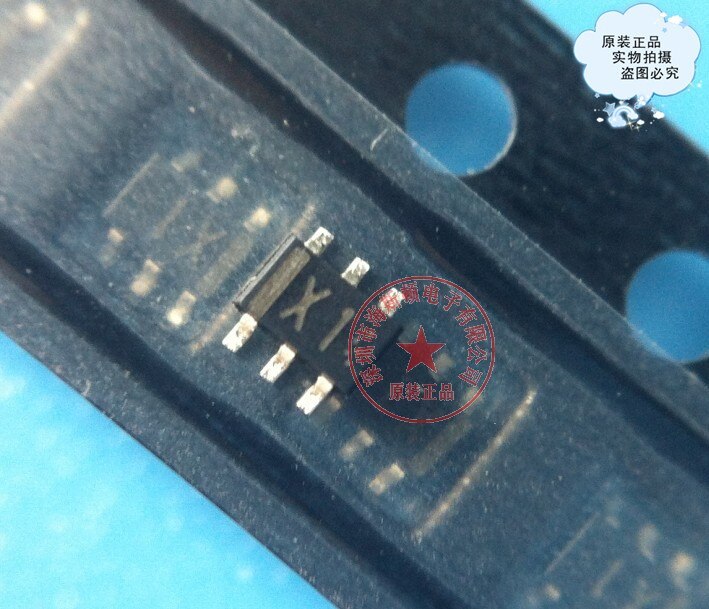

100pcs UMX1N SOT-363 UMX1NTN SOT363 marking: X1 SMD mitsubishi ignition tube
The UMX1N parts manufactured by mitsubishi are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The UMX1N components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the UMX1N Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are detailed information about the UMX1NTN chip:
Technical Parameters
- Transistor type: Dual NPN type bipolar transistors
- Operating voltage: 1.8V to 5.5V
- Collector-emitter voltage (VCEO): 50V
- Collector current (Ic): 150mA (continuous)
- Operating temperature range: -55°C to +150°C
- Power dissipation: 150mW (maximum)
- Transition frequency (fT): 180MHz
- Saturation voltage (VCE(sat)): 400mV (@ 5mA, 50mA)
- Package size: 2.1mm x 2.0mm (0.9mm thickness)
Functional Features
- Ultra-compact package: SOT-363 package with compact size for space-constrained designs.
- Low power consumption: Quiescent current as low as 1μA for battery-powered portable devices.
- High operating frequency: Supports operating frequency up to 180MHz for high-frequency applications.
- Multiple Protection Functions: Built-in thermal and short-circuit protection ensures the safety of the chip under abnormal conditions.
- High performance: High current gain and low noise characteristics provide excellent signal amplification performance.
Cautions
- Compatibility: Before purchasing, please make sure the chip is compatible with your device.
- Installation Instructions:
- Make sure the chip is mounted in the right direction and the pins are aligned with the pads on the board.
- During soldering, pay attention to temperature control to avoid overheating and damaging the chip.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Summary
The UMX1NTN is a high-performance dual NPN-type bipolar transistor manufactured by ROHM Semiconductor for a wide range of audio and high-frequency applications. Its ultra-compact package, low power consumption, and multiple protection features make it an excellent performer in portable devices and small electronic systems. During use, please make sure it is compatible with your equipment and install and operate it according to the specifications.
