We sell the product of stepper motor all from original factory .we can offer one hundreds Thousands of thousands and so on .
our product will better than our picture.Each motor comes from the original factory
if you need more ,we can give you more discount and best service.

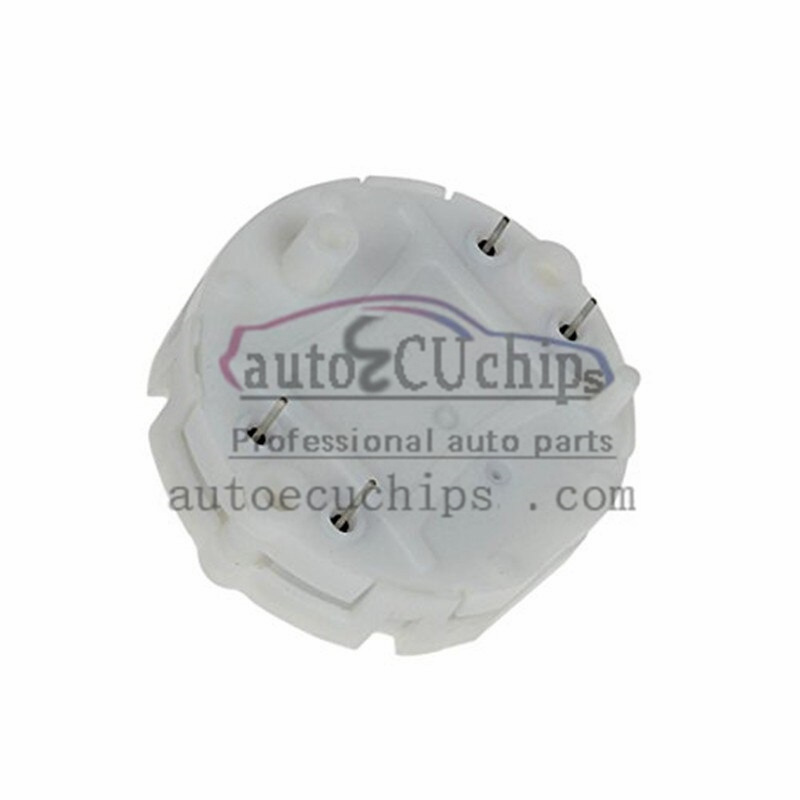

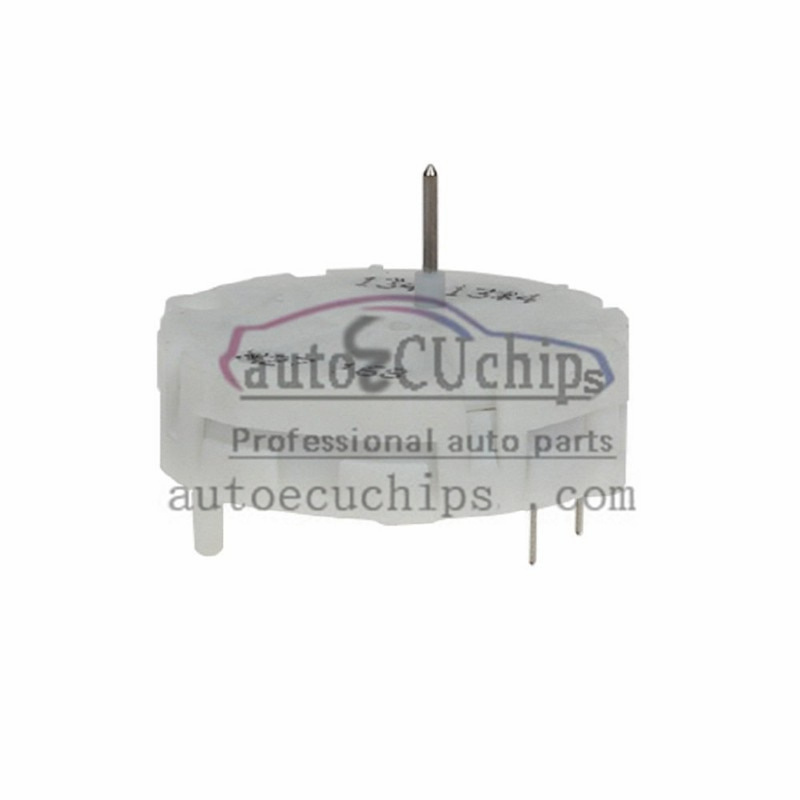

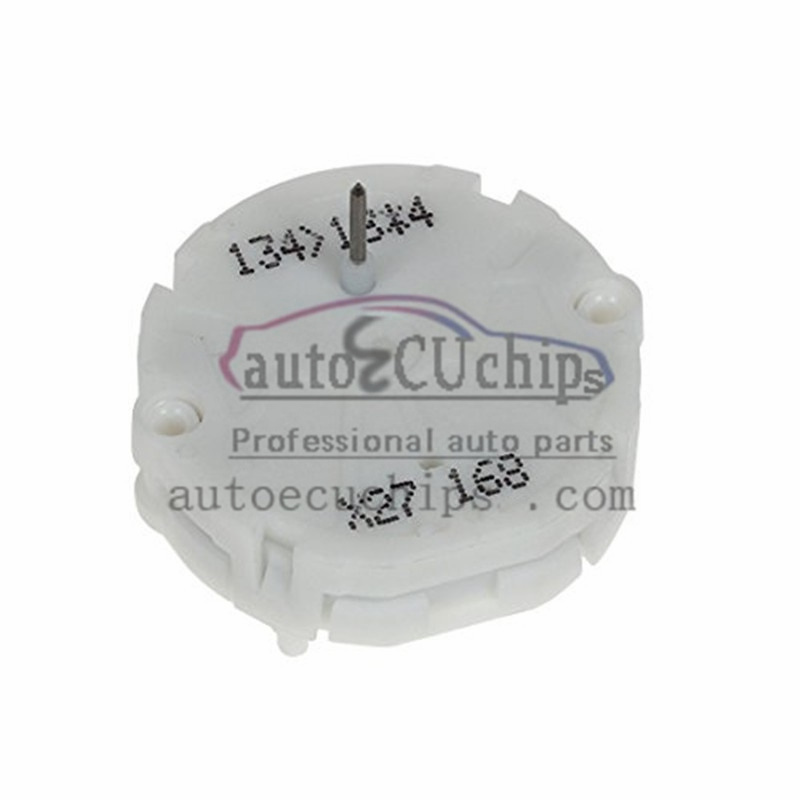

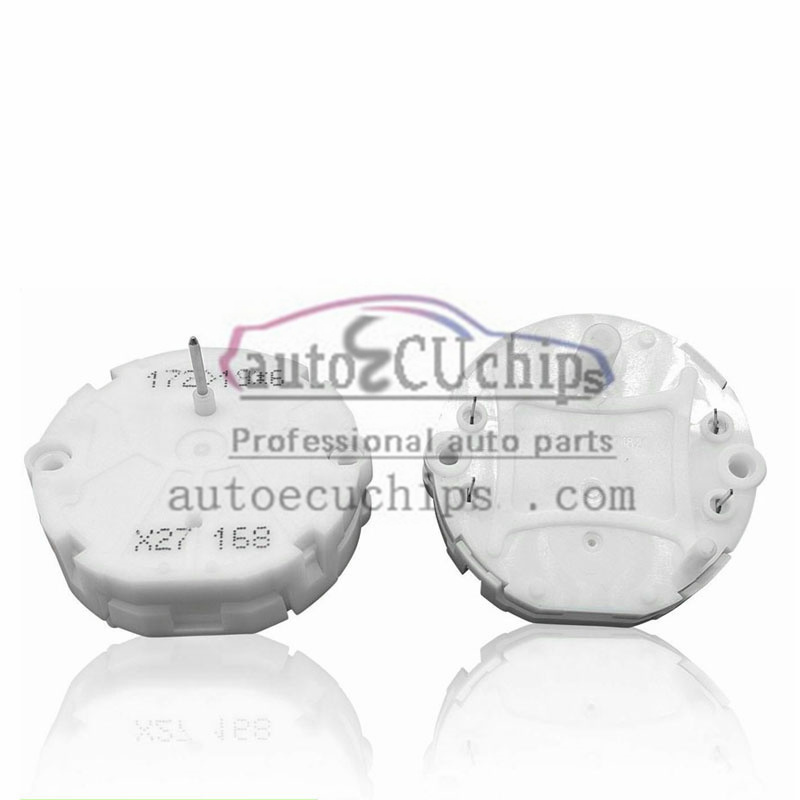

6pcs/lot x27.168 Stepper Motor Instrument Cluster for GM GMC Cars Trucks Cluster Speedometer Gauge same XC5 168 X15 X25 x27 168
New Stepper Motor X27-168 DC5-10V Speedometer Replace Gauge Cluster X25-168 X15-168 XC5-168
Application :

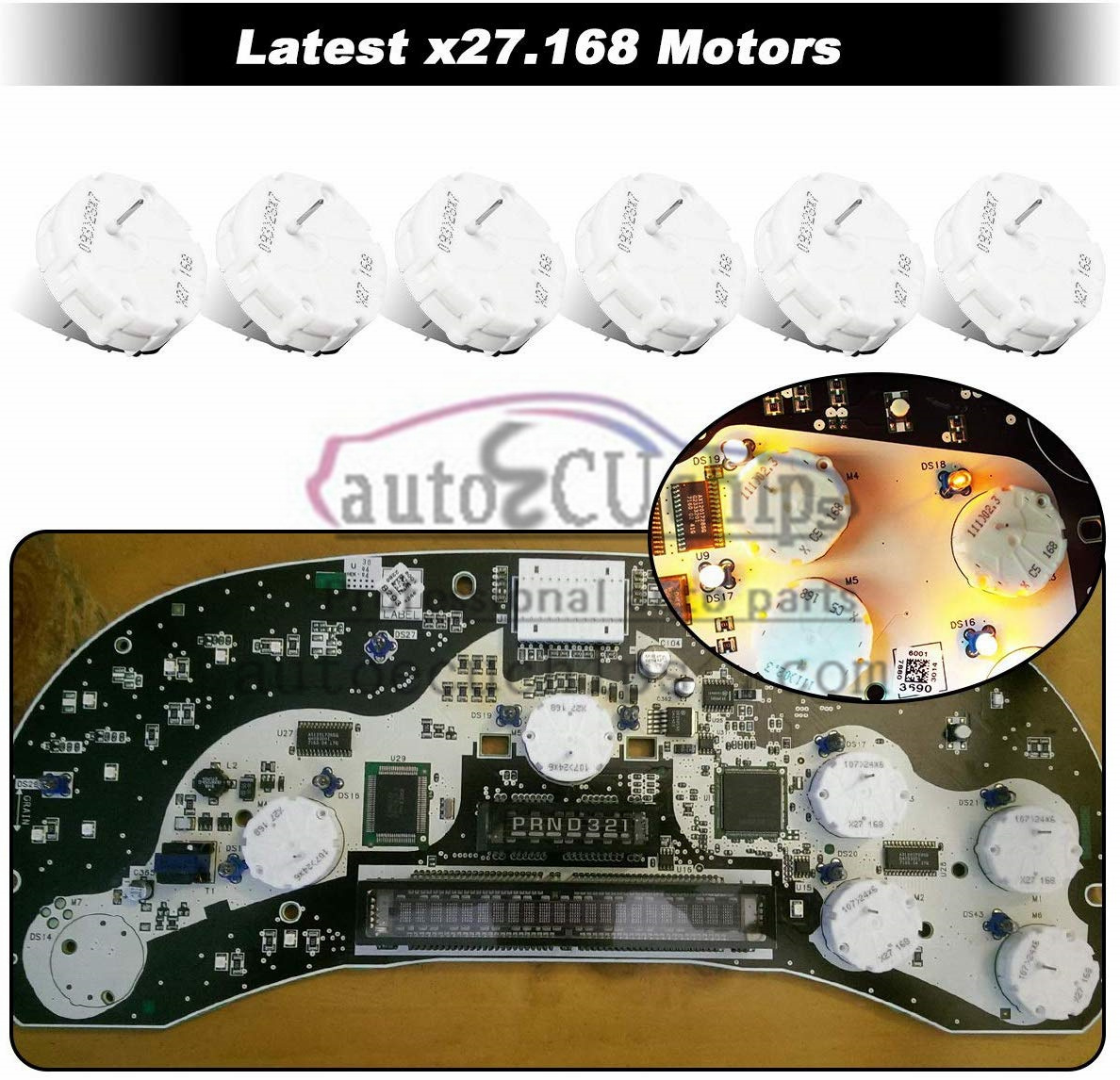

New generation steppers perfectly replace for the Xc5 168, X15 168, X25 168 and X27 168 that are in your cluster from 2000 to 2006,for GM GMC cars and trucks General Motors instrument clusters
Compatiblity:
*2003 - 2006 SILVERADO, SIERRA, SUBURBAN, AVALANCHE, TAHOE, SIERRA, YUKON,
DENALI, ESCALADE, H2HUMMER, TOPKICK & KODIAK.
*2002 - 2010 TRAILBLAZER, ENVOY, RAINIER, ASCENDER & SSR.
*2000 - 2005 CAVALIER, SUNFIRE, GRAND PRIX, GRAND AM, RENDEZVOUS, IMPALA,
MONTE CARLO, LESABRE, BRAVADA, VENTURE, AZTEK, MONTANA,
BONNEVILLE, SIHOUETTE & RAINIER.
*2003 - 2004 TRACKER
Features:
*Interchange Part Number Xc5 168, X15 168, X25 168,X27 168
*100% brand new ,never used and installed
*Work in any gauge position and are the latest and greatest.
*Each Gauge has a stepper motor and the item will fit almost all Gauges.
* Wide working voltage: 5~10V
* current consumption: less than 20mA, 5V, 2X100mW.
* Car Stepper Motor For Speedometer Tachometer Water temp Oil temperature Gauge For Clusters Xc5 168 X15 168 X25 168 X27 168
Sepcification:
Dimensions:
Number of Pins: 4
Pointer axle diameter: 1 mm
Pointer axle length: 9 mm
Length of the PIN in pointer movement: approx. 3,5 mm
Working Voltage: 5 to Voltage.
Net Weight 700g
current consumption: less than20mA, 5V, 2X100mW.
Extremely Robust Construction: 30mm x 7.6mm.
High resolution: 1/12
Directly driven by a controller
fits for:
Engine number:
X 15-168
X 25-168
X 27-168
XC5-168
XB5-168
VID29-02P
Notice:
*Please make sure you can handle this work, it may need some professional equipment and electronic knowledge of PC Boards.
*We are not responsible for any damages caused by the installation of these motors.
Here is more information about the X27.168 stepper motor:
Technical Parameters
- Type: 2-phase stepper motor
- Operating voltage: typically 5V to 12V (see datasheet for details)
- Operating temperature range: -40°C to +85°C (automotive applications)
- Maximum angle of rotation: 315°
- Stepping angle: 0.5° (theoretical)
- Current consumption: approx. 20mA per coil (low power consumption)
Applicable Makes and Models
X27.168 stepper motors are widely used in a variety of automotive makes and models, mainly for automotive instrument pointer drives. The following are some of the applicable automobile brands and models:
- Buick: the instrument panel of Kayo, GL8, Saio, Luzun and other models.
- Chevrolet: Cruze, Myriad and other models of the dashboard.
- Opel: Dashboards for some Opel models.
- General Motors: Dashboards of some General Motors models.
Cautions
- COMPATIBILITY: Before purchasing, please make sure the chip is compatible with your car's specific make, model and year.
- Installation instructions: When installing, make sure the wiring is connected correctly to avoid misconnecting the wires leading to damage to the chip or malfunction of the car's electronic system. It is recommended that the installation be carried out by a professional automotive service technician.
- Working environment: Although the chip has a certain degree of heat resistance and anti-interference ability, but in the extremely harsh working environment, its performance may be affected, you need to pay attention to the daily maintenance and repair of the car, to maintain a good working environment.
Conclusion
X27.168 is a high-performance stepper motor produced by Juken, which is widely used in automotive instrument pointer drive. Its low-power design and high-precision control make it widely used in many automobile brands and models. In the process of use, pay attention to the chip compatibility, installation requirements and working environment to ensure the normal operation of automotive instruments.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
