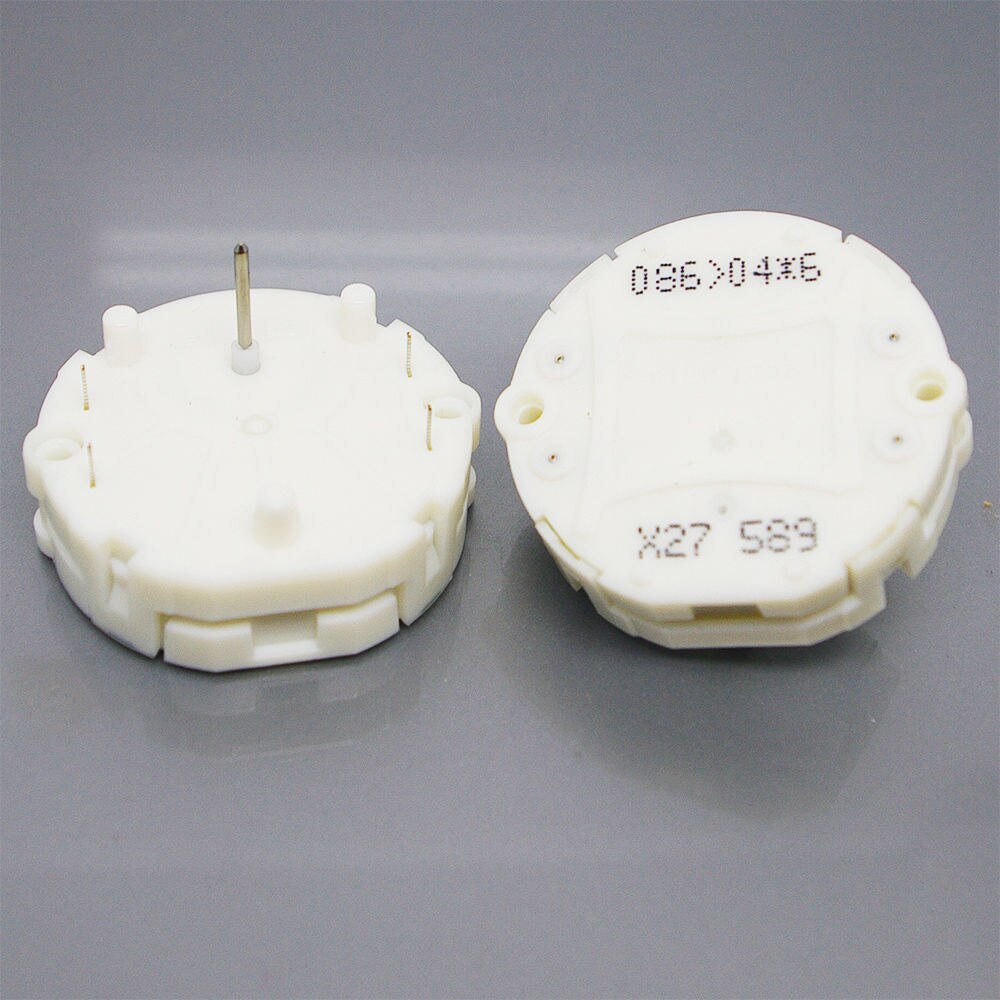

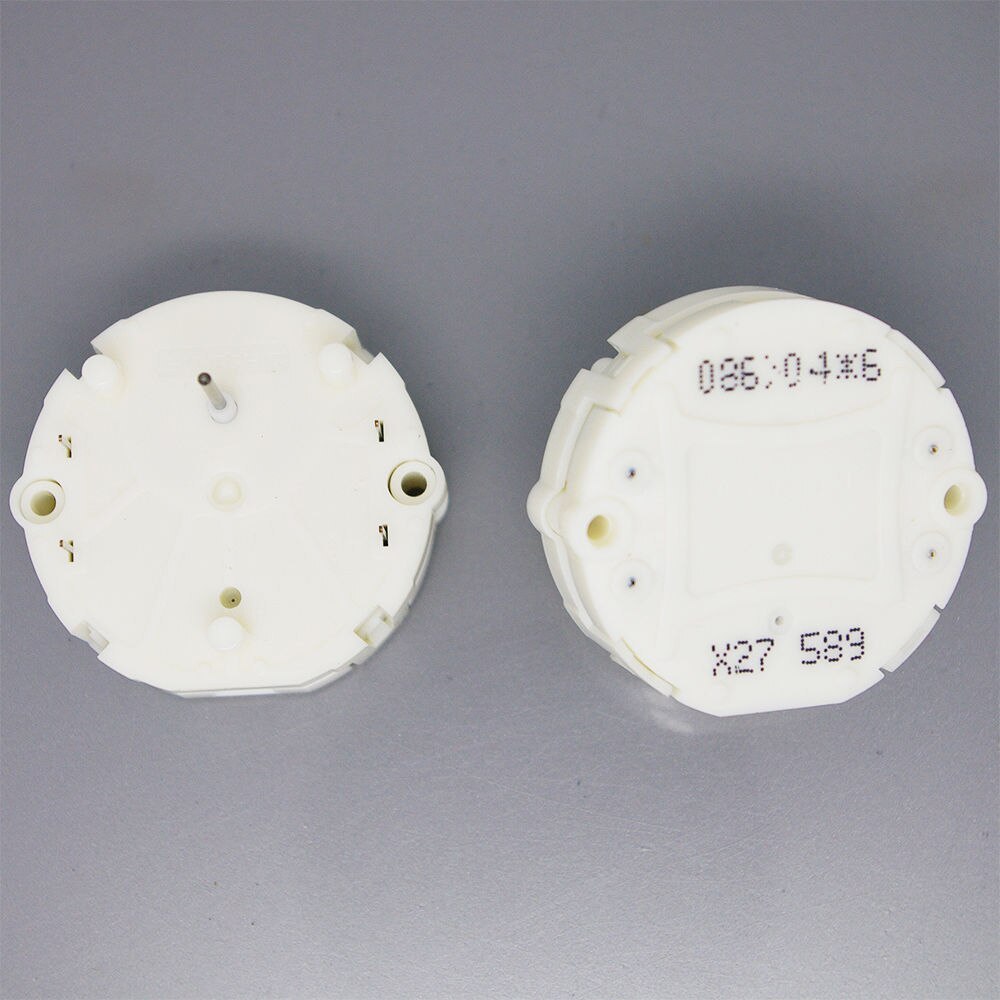

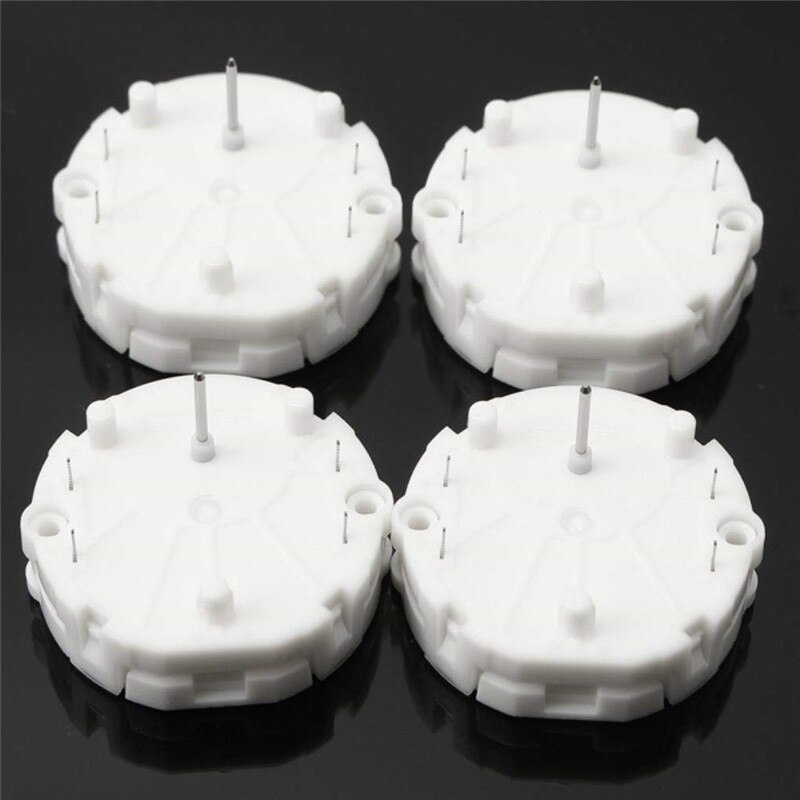

Below you will find detailed information about X27.589 Automotive Instrumentation Stepper Motor, including its technical parameters, application scenarios, applicable models, and purchasing information:
- Features:
- Smooth and precise rotation.
- Ultra-thin design
- Ultra-low power consumption
- Wide range of operating voltage
- Powerful dynamic and static torque
- Special noise reduction design
Technical Parameters
- Operating voltage: 5V to 12V
- Operating temperature range: -40°C to +105°C
- Current consumption: less than 20mA (5V, 2 × 100mW)
- Size: Ф30mm × 7.6mm
- Stepping resolution: 1/12 °
- Drive mode: directly driven by the microcontroller
- Rotation angle: 315 ° (945 steps)
Applicable models
- Ford (Ford):
- Ford Mustang: 2005-2009
- BMW:
- BMW E46: some models
- Mercedes-Benz:
- S-Class: some models
- Volkswagen:
- Golf: some models
- Passat: some models
- Santana:
- Santana 3000: some models
- Other brands:
- Fiat Stilo: some models
- Scania: some models
- New Holland: some models
- Jaguar: some models
- Seat: some models
- Volvo: some models
Notes
- COMPATIBILITY: Before purchasing, please make sure this stepper motor is compatible with your model and year.
- Installation Instructions:
- After installing the new motor, make sure it is installed correctly.
- After energizing and starting, wait for 3 seconds, turn off the key, and then insert it directly with the pointer aligned with the zero position, avoid rotating the motor manually to avoid damaging the motor's speed ratio.
- Replacing the motor does not solve the problem, it may be a circuit board failure, you need to consider replacing the assembly.
- TECHNICAL SUPPORT: If further technical support is required, it is recommended that the supplier or manufacturer be contacted.
SUMMARY
X27.589 is a high performance automotive instrumentation stepper motor manufactured by Juken and widely used in Ford, BMW, Mercedes-Benz, Volkswagen and other brands of automobiles. It is suitable for a wide range of automotive instrument panel systems, such as speedometer, tachometer, fuel gauge, etc.
