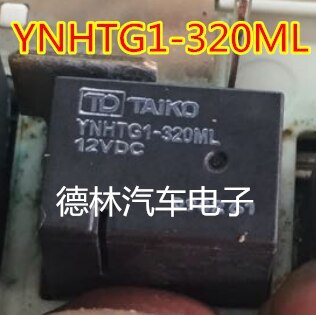

YNHTG1-320ML 12VDC Automotive Center Control Electromagnetic Relay

YNHTG1-320ML-12VDC is a high performance automotive grade relay for a wide range of automotive electronic systems. If you require further technical support or a datasheet, please visit the link above or contact us whatsapp +8618718921345

YNHTG1-320ML-12VDC is an automotive grade relay manufactured by TAIKO and widely used in automotive electronic systems.

Technical Specification

- Coil voltage: 12VDC

- Contact form: SPDT (single-pole double-throw)

- Maximum switching voltage: 30VDC

- Maximum switching current: 30A

- Rated current: 20A (normally closed side: 10A)

- Coil current: 80mA

- Coil resistance: 150Ω

- Operating temperature range: -40°C to +85°C

- Operating temperature range: -40°C to +85°C Action time: Max. 10ms

- Release time: Max. 10ms

- Contact material: silver alloy (cadmium-free)

- Contact Resistance: Maximum 15mΩ (Typical 2mΩ)

- Insulation resistance: 20MΩ minimum (500VDC test)

- Voltage Resistance: 500Vrms for 1 min.

- Mechanical Life: Minimum 1,000,000 cycles (120 cycles/minute)

- Electrical life: 100,000 cycles minimum (2 seconds ON, 2 seconds OFF)

- Operating humidity range: 5% to 85% RH (avoid ice or condensation)

- Weight: approx. 20g


Package and Dimensions

- Package type: DIP (Dual In-line Package)

- Number of pins: 6 pins

- Dimensions:

- Length: 25.4mm

- Width: 12.7mm

- Height: 12.7mm


Application Fields

- Automotive electronics:

- Engine Control Unit (ECU)

- Body Control Module (BCM)

- Electronic fan control

- Instrument cluster control

- Electronic Parking Brake (EPB)

- Fuel Pump Control
