The AO6800 parts manufactured by Alpha & Omega Semiconductor Inc. (AOS) are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The AO6800 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the AO6800 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.

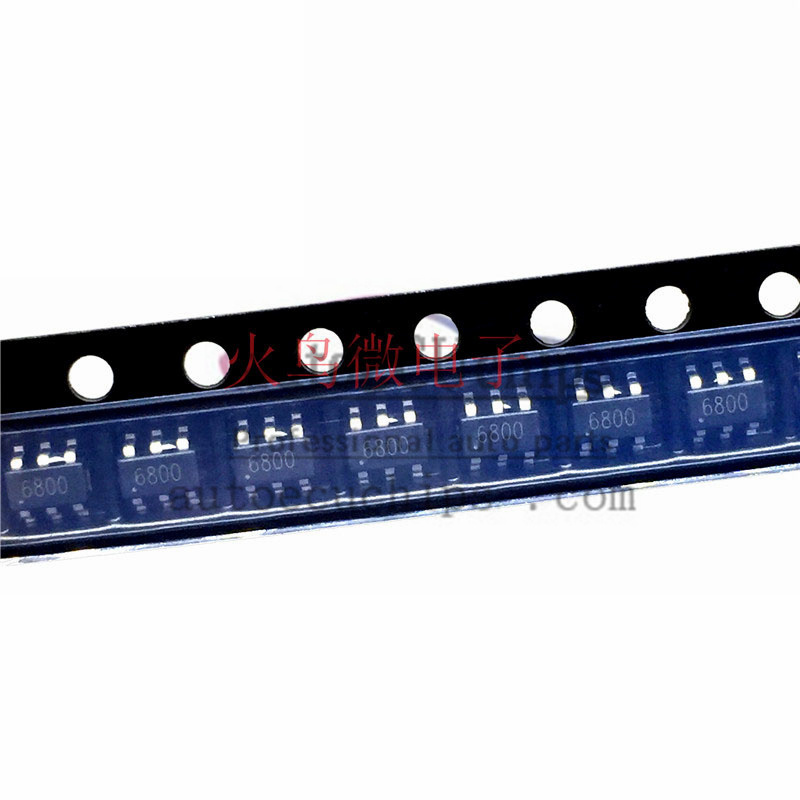

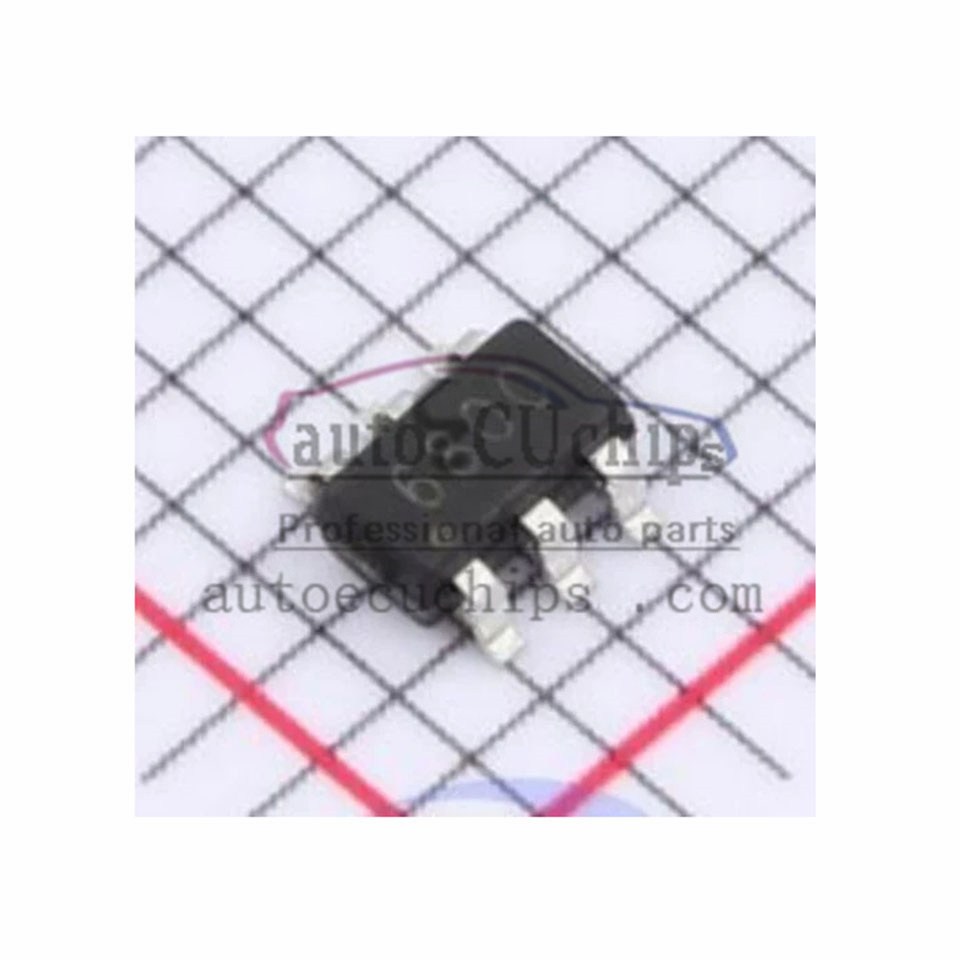

The following is detailed information about the AO6800 chip, organized in a specific format:
- Features:
- 30V dual N-channel MOSFET.
- Utilizes advanced trench technology to provide excellent on-resistance (RDS(ON)) and low gate charge.
- Supports gate drive voltages as low as 2.5V.
- Suitable for high-efficiency power conversion and electronic device switch control.
Technical Specifications
- Package type: SOT-23-6L
- Number of pins: 6 pins
- Operating voltage range: Up to 30V
- Continuous drain current (ID): 3.4A (at 25°C)
- Maximum power dissipation (PD): 1.15W (at 25°C)
- On-resistance (RDS(ON)):
- 60mΩ @ VGS=10V, ID=3.4A
- 70mΩ @ VGS=4.5V, ID=3.4A
- 90mΩ @ VGS=2.5V, ID=2.4A
- Threshold voltage (VGS(th)): Maximum 1.5V @ ID=250μA
- Gate charge (Qg):
- 4.7nC @ VGS=4.5V
- 10nC @ VGS=10V
- Operating temperature range: -55°C to +150°C
- Storage temperature range: -55°C to +150°C
- Reverse recovery charge (Qrr): 2.55nC
- Inter-electrode capacitance:
- Input capacitance (Ciss): 235pF @ VDS=15V, VGS=0V
- Output capacitance (Coss): 35pF @ VDS=15V, VGS=0V
- Feedback capacitance (Crss): 18pF @ VDS=15V, VGS=0V
Notes
- Compatibility: Before purchasing, please confirm that the chip is compatible with your application.
- Installation instructions:
- Ensure that the power supply voltage meets the chip specifications.
- Use appropriate decoupling capacitors to reduce noise.
- Operate the device within the specified temperature range.
- Technical Support: For further technical support, contact the supplier or manufacturer.
Summary
The AO6800 is a high-performance dual N-channel MOSFET produced by Alpha & Omega Semiconductor Inc., suitable for various electronic applications, particularly excelling in power management and signal control. Its low on-resistance and low gate charge make it highly practical and reliable in high-efficiency power conversion.
